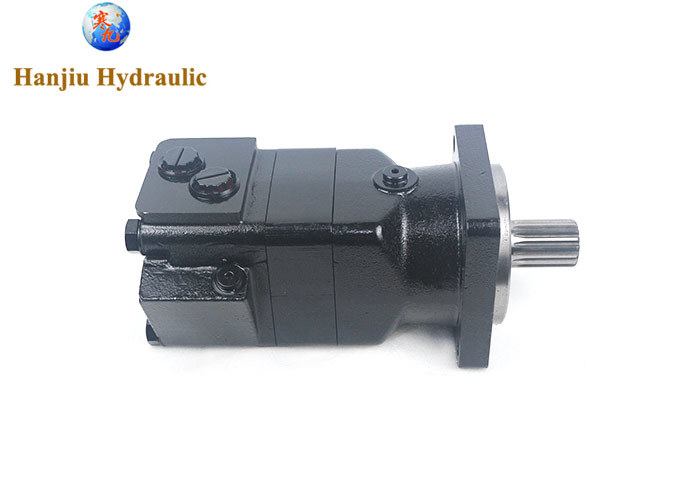

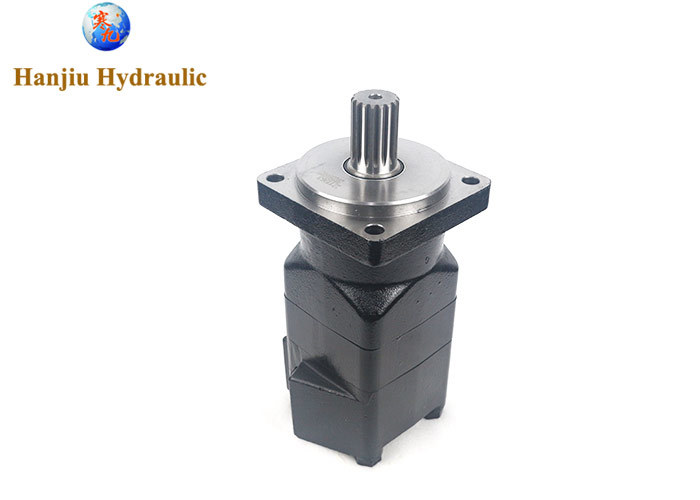

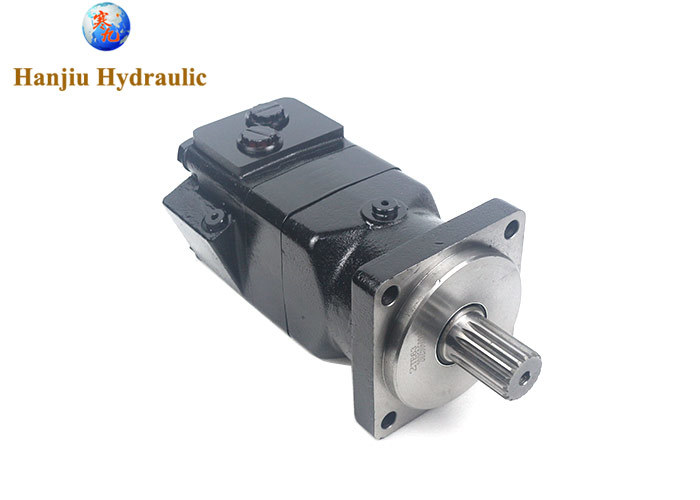

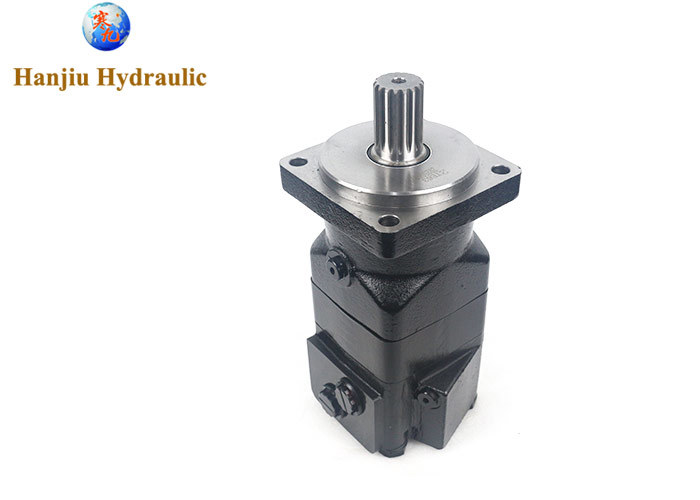

TK0630K5360AAAA Parker hydraulic orbital motor 630 cm3 series TK Torqmotor
HANJIU Technology produce the BMTE series motors, matching Parker TK torqmotors
with the same performance, specification
the details as below
hanjiu code :BMTE-630-CC-FE-SE1-B
Specification:
| DISPLACEMENT | 630CC |
| | BMT630,MT630,OMT630,6K |
| PORT LOCATION | Side Port, Staggered |
| SHAFT TYPE | 1 1/2 inch spline shaft with 17 teeth |
| DRAIN | 7/16-20UNF O-ring |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 380rpm/460rpm |
| FLOW RATE | 125l/min |
| RPM [MAX] | 460rpm |
| DUTY | Standard-Duty |
| GEROTER/GEROLER OPTIONS | Standard |
| MOUNTING TYPE |
4-Ø14 Square-flangeØ160, pilotØ125×9 |
| PORT SIZE | 1-5/16-12UN |
| MOTOR TYPE | Disc Valve |
Hanjiu Orbital motor has successfully served in the following fields by virtue of its flexible adaptability:
(1) Construction Machinery
Excavators and loaders: BM series motors are used to drive the traveling and slewing mechanism, with stable output torque and strong shock resistance.
Sanitation equipment: OMH series is used for sweeper brush drive, with low speed and high torque to ensure the cleaning efficiency.
(2) Agriculture and forestry
Harvesters and mowers: BMP series lightweight design fits compact space and is resistant to dust and vibration.
Logging machinery: BMH series high power density to meet the needs of high-frequency start and stop of logging saws.
(3) Industrial Manufacturing
Injection molding machine: OMH series accurate flow control and low noise characteristics to ensure the stability of the molding process.
Machine transfer system: LMPS series high response speed to enhance the efficiency of automated production lines.
All-round service guarantee, customer value maximization
HANJIU is driven by the dual-wheel drive of technical support + after-sales response to ensure that customers use without worry:
Customized service: Support OEM production, provide personalized configuration of flange, output shaft, oil port, etc.
Technical guidance: provide free performance curve diagrams and installation plans to assist customers in optimizing system matching.
We always take technological innovation as the engine and customer demand as the guide to provide high-quality production products. Hanjiu has rich experience in production and strong production capacity, and now we have all kinds of Orbital motor for sale, welcome to come and buy!
