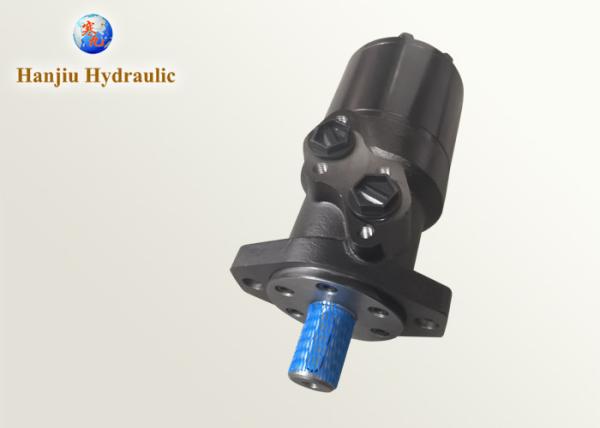

Low Speed High Torque Road Sweeper Broom Drive Hydraulic Motor / Pump
We are professional manufacturer produce Hydraulic Orbital Motors.
Our Hydraulic Motors quality match than and M+S Hydraulic Motors.
BMM = MM = OMM Motors
BMP = MP = OMP Motors
BMR = MR = OMR Motors
BMH = MH = OMH Motors
BMS = MS = OMS Motors
BMT = MT = OMT Motors
BMV = MV = OMV Motors
1. Characteristic features
1. The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
2. With the axial oil distribution structur, it is of smaller size and less weight.
3. With two inner check valves, no drain connection.
4. With cycoid group with the roller, it has a small friction nd high mechanical efficiency.
5. Low speed, high torque motors
6. Roller vane type drive system – offers high volumetric efficiency and long life.
7. Available in several body sizes, with a range of displacements, mounts, ports, shafts and valve options
8. Manufactured with high quality materials and systems to exacting standards
2. Specification
| Type | BMR
BMRS
36 | BMR
BMRS
50 | BMR
BMRS
80 | BMR
BMRS
100 | BMR
BMRS
125 | BMR
BMRS
160 | BMR
BMRS
200 | BMR
BMRS
250 | BMR
BMRS
315 | BMR
BMRS
375 | | Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | | Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 | | int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | | Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 | | int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | | peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | | Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 | | int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | | Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 | | int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | | peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | | Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | | int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | | Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
3. Application
Widely used in road sweepers.
